Wireless Addressable Fire Detection & Alarm System

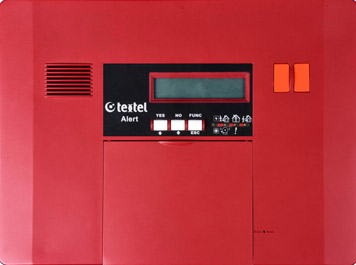

TEXTEL Alert IP based bus technology wireless fire alarm panel with bi-directional data transfer provides an intelligent software – aided administration up to 200 physical addressable devices in each panel and support unlimited control panels enabling networking of multiple sites with CMS (Centralised Monitoring Station). Addressable technology for integration of automatic and non- automatic life safety detectors as well as un- ambiguous identification of activated detector in the event of disaster. Textel adopts JIS Technology, ( Japan Industrial Standards ) and is manufactured in India.

The “Alert” incorporates duplex communication technology and utilizes FHSS ( Frequency Hopping Spread Spectrum) signaling and reception of protocols to ensure the most secure and reliable fire alarm network. Textel “Alert” fire control panel and its accessories meets national code requirements (NCR) complying with EN, VDS, FCC, CE, ROHS etc.*

  • Wireless Addressable Fire Detection & Alarm System
  • Fire Extinguisher


  • Wireless Smoke Sensor

    • Powered from standard AA batteries
    • Long battery life up to 3 years*
    • Anti tamper protection
    • Concealed antenna within sensor
    • Multi-sensor technology *
    • Combining optical smoke detection and configurable*
    • Heat detection (fixed, rate of rise and high temperature*)
    • Highly visible LED beacon
    • Built in Sounder with multi sensor techonology

  • Wireless Smoke & Heat Sensor

    • Powered from standard AA batteries
    • Long battery life up to 3 years*
    • Anti tamper protection
    • Concealed antenna within sensor
    • Multi-sensor technology *
    • Combining optical smoke detection and configurable*
    • Heat detection (fixed, rate of rise and high temperature*)
    • Highly visible LED beacon
    • 2 Level volume setting*

  • Wireless Manual Call Point

    • Standards: EN45 Pt25 components using wireless link
    • EN45 Pt11 call point, Humidity (NC): 0 to 95% RH
    • Operating voltage: Lithium battery 9V
    • lithium battery 3V, type CR2032
    • Battery life: 3 years*(main battery)
    • Range: 200m max. 3km with signal repeaters*
    • Ambient temperature: 10°C to +55°C
    • Protection: IP54, Frequency band: 868/ 2400 MHz*
    • Weight: 200g (without batteries, with mounting box)

  • Wireless CO Sensor

    • Powered from standard AA batteries
    • Long battery life up to 3 years*
    • Anti tamper protection
    • Concealed antenna within sensor
    • Multi-sensor technology *
    • Combining optical smoke detection and configurable*
    • Heat detection (fixed, rate of rise and high temperature*)
    • Highly visible LED beacon
    • 2 Level volume setting*

  • Wireless Gas Detector

    • Powered from standard AA batteries
    • Long battery life up to 3 years*
    • Anti tamper protection
    • Concealed antenna within sensor
    • Multi-sensor technology *
    • Combining optical smoke detection and configurable*
    • Heat detection (fixed, rate of rise and high temperature*)
    • Highly visible LED beacon
    • 2 Level volume setting*

  • Signal Repeater

    • Standards: EN45 Pt25 components using wireless links
    • Frequency: 867MHz / 2400 MHz*
    • Relay output: 4 Relay outputs
    • Operating Temperature -10°C to +55°C
    • Humidity (NC) 95% RH
    • Weight: 176 gm

  • Wireless Sounders and Strobe Sirens

    • Power supply: AC 220V and battery powered*.
    • Current consumption: 70μA (sounder off)
    • Ambient temperature: -10°C to +55°C
    • Dimensions W × H × D 108 × 108 × 95 (mm)*
    • Weight 255g*
